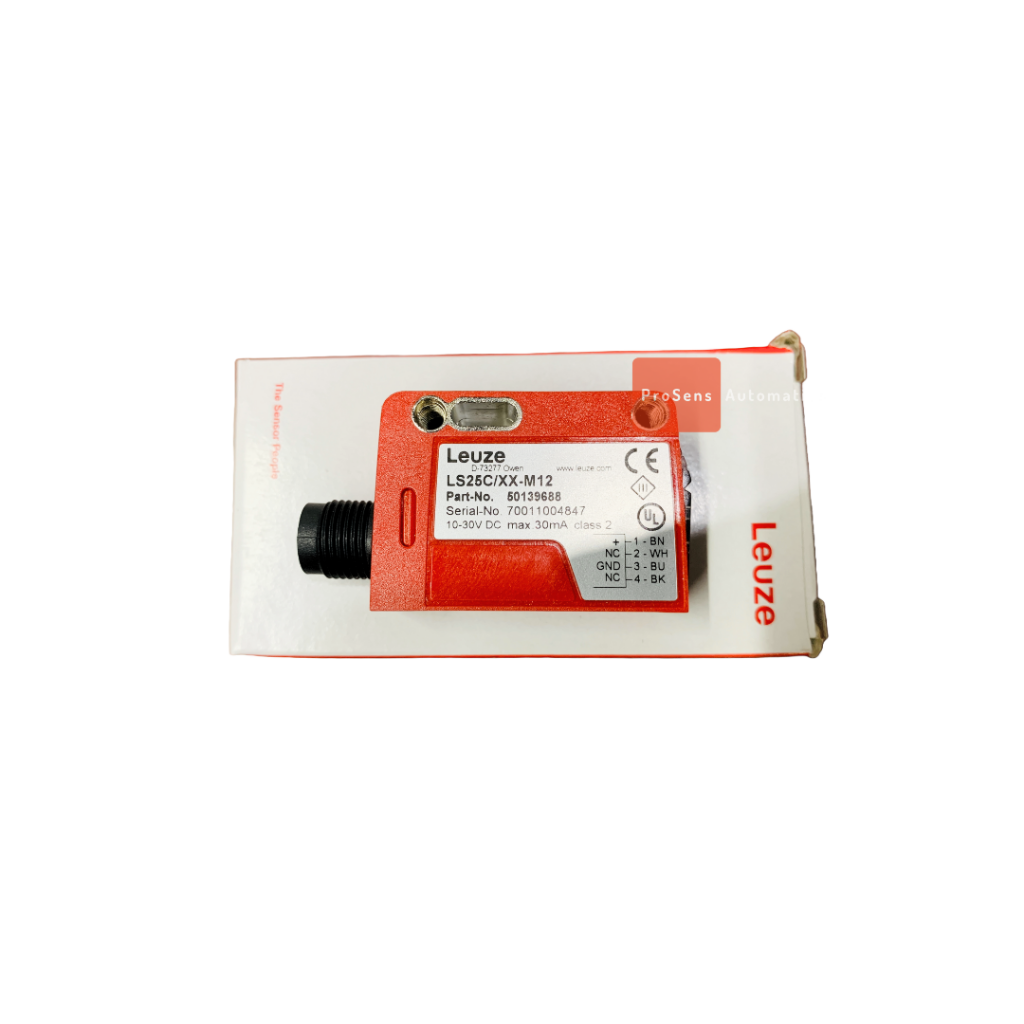

Leuze Brand LS25C/XX-M12 Throughbeam Photoelectric Sensor Transmitter

0.00

Part no.: 50139688



Additional information

Basic Data

Series 25C
Operating principle Throughbeam principle
Device type Transmitter

Optical data

Operating range 0 … 25 m
Operating range limit 0 … 30 m
Light source LED, Red

Electrical data

Protective circuit Polarity reversal protection
Short circuit protected

Performance data

Supply voltage UB 10 … 30 V, DC, Incl. residual ripple
Residual ripple 0 … 15 %, From UB
Open-circuit current 0 … 20 mA

Connection 1

Type of connection Connector
Thread size M12
Material PUR
No. of pins 4 -pin

Mechanical data

Dimension (W x H x L) 15 mm x 42.7 mm x 30 mm
Housing material Plastic
Plastic housing ABS
Lens cover material Plastic
Net weight 22 g
Type of fastening Through-hole mounting with M4 thread
Via optional mounting device
Compatibility of materials ECOLAB

Environmental data

Ambient temperature, operation -40 … 60 °C

Certifications

Degree of protection IP 67
IP 69K
Protection class III
Certifications c UL US
Standards applied IEC 60947-5-2

Classification

Customs tariff number 85365019
ECLASS 5.1.4 27270901
ECLASS 8.0 27270901
ECLASS 9.0 27270901
ECLASS 10.0 27270901
ECLASS 11.0 27270901
ECLASS 12.0 27270901
ECLASS 13.0 27270901
ETIM 5.0 EC002716
ETIM 6.0 EC002716
ETIM 7.0 EC002716
ETIM 8.0 EC002716
